ClipFix plus SD

The user-friendly clip fixing for cable ducts and cable clasps

The fischer ClipFix plus SD is an easy-to-mount solution for fixing cable ducts, cable clasps and cable harnesses. The clip fixing is made from high-quality nylon and combines a plug with screw in one component, thus reducing mounting time. The innovative electrical fixing is inserted into the drill hole without a screw and securely fixes loads of up to 11 kg in concrete and solid brick. The ClipFix plus SD can also withstand extreme temperature loads of -20°C to +80°C.

Product Description

Advantages
  • The ClipFix plus SD combines anchor and screw. This saves on materials and makes it easier to affix cable ducts that are difficult to access without the need for additional tools.
  • The simple clip fixing reduces installation time.
  • The extended shank of the FS plus SD 40 allows bridging of non-bearing plaster layers, as well as the fixing of thicker attachments.
  • The long-lasting nylon material is flame resistant, halogen- and silicone-free. It can be used all year round, including during a frost. This ensures a high level of safety.

Available Product Variants


2 Product variant (s) found

2 Product variant (s) found

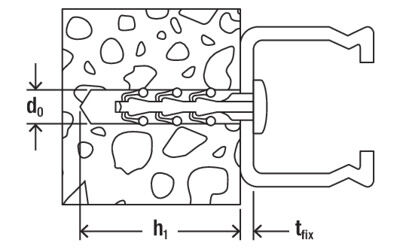

Variant
Min. drill hole depth

h1

Usable length

tfix

Packaging
Amount
Art.-No. 058178

35 [mm]

4 [mm]

Folding box

200 [pcs.]

Art.-No. 058179

35 [mm]

15 [mm]

Folding box

100 [pcs.]

Viewed 2 of 2 variant (s)
0

Application and Permission

Applications
For fixing of:
  • Cable channels
  • Cable clasps
  • Installation base cable harness
  • Flat building components
Building materials
  • Concrete
  • Solid pumice block
  • Solid sand-lime brick
  • Natural stone with dense structure
  • Solid brick
* You can find detailed information on building materials in the registration document.
For Details see corresponding Documents

Assembly Instruction

Functionality
  • To fix, manually place the ClipFix plus SD directly into the drill hole. No additional screws are needed.
  • The clamping force of the locking catch allows the ClipFix to hold itself in the drill hole.
  • Recommended loads (required safety factor considered): clip fixing SD up to 11 kg.
  • Temperature resistance once installed from -20 °C to +80 °C.
  • Flammability material UL 94-V0.
