Subframe profiles

Subframe profiles for ventilated rainscreen façades.


Found 2 products and 13 variants

Found 2 products and 13 variants

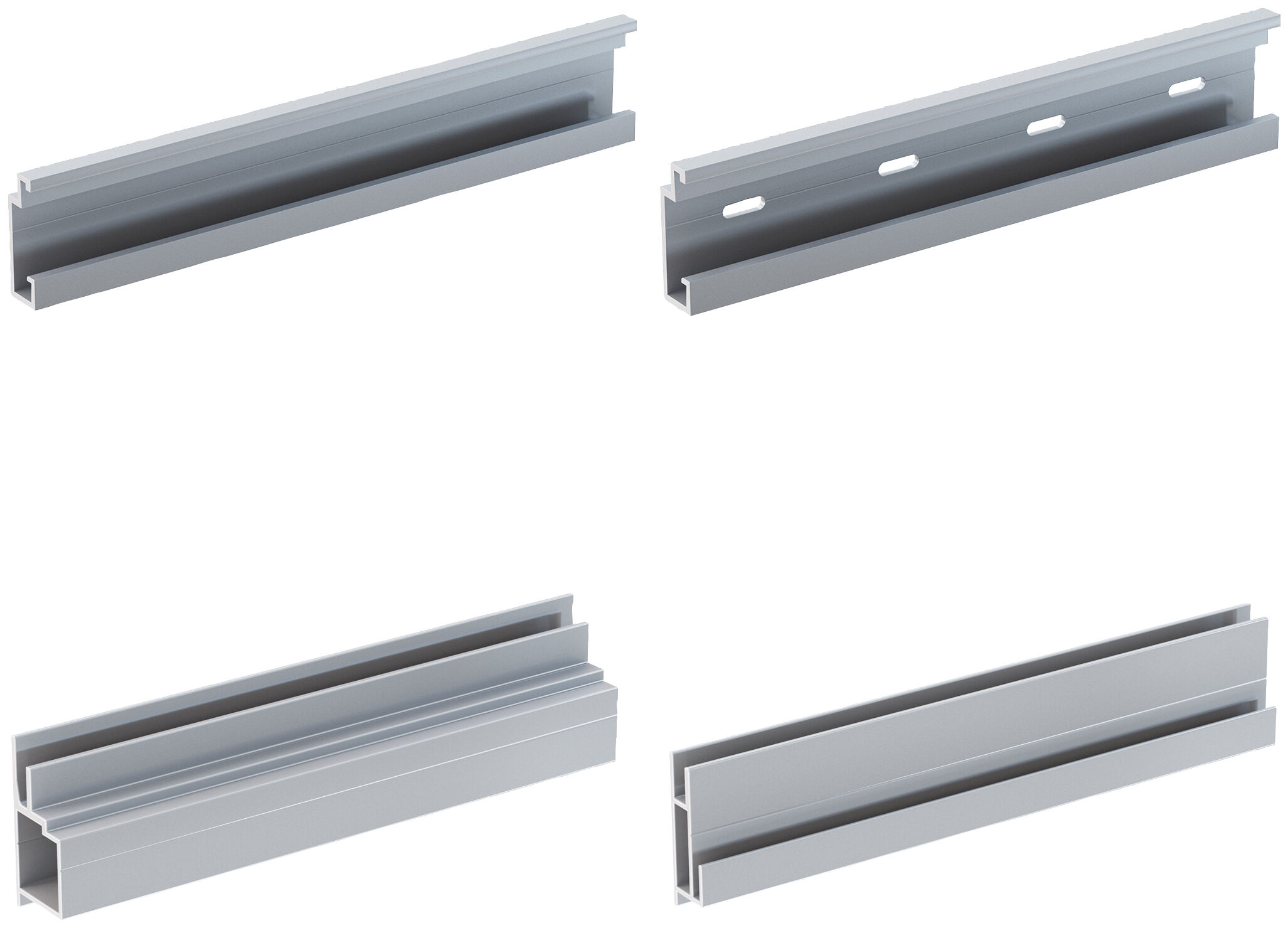

Horizontal profiles

Horizontal profiles

For horizontal load transfer of ventilated rainscreen façades
Show 2 variants
Vertical profiles

Vertical profiles

For vertical load transfer of ventilated rainscreen façades
Show 11 variants
Viewed 2 of 2 products

Subframe profiles

Subframe profiles for ventilated rainscreen façades.

The subframe profiles are used as load-bearing system of the ventilated rainscreen façade for vertical and horizontal loads. Depending on the application, the substructure can be made of vertical or horizontal profiles only, as well as a combination of both variants. The profiles are available in various designs as well as in different dimensions, depending on the requirements. The connection of the subframe profiles to each other as well as to the wall brackets can be done with nearly all common connection elements. The combination of wall holders and profiles enables adjustment of the subframe in the exact plumb and alignment. This also allows to compensate the structural tolerances.
