fischer Frame fixing SXRL 10 x 160 FUS zinc-plated steel

The versatile with multiple anchorage depth

Art.-No. 522724
Top Features
  • ETA assessment with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry.
  • The long expansion element makes the SXRL versatile.
  • Loads are applied evenly to the building material thanks to the fixing geometry. This means that the fillets are not destroyed in the case of thin-walled building materials.
  • Simple to assemble: Ribs prevent plug rotation during installation.

Product Description

The fischer frame fixing SXRL FUS is approved along with the fischer hexagon head screw with moulded washer and integrated bit holder TX40 for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings of façade, ceiling and roof substructures made of metal.
  • The long expansion element with multiple anchorage depths of 50, 70 or 90 mm for SXRL 8 and SXRL 10 and 70 or 90 mm for SXRL 14 makes the SXRL an extremely versatile product.
  • Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole.
  • The approval for single-point fixing in cracked concrete makes the SXRL the designated specialist in concrete particularly for tasks such as the installation of awning roofs and outdoor railings compared to steel anchors.
  • When it is to be set deep, the longer ribs prevent the plug from turning during installation.
  • The SXRL 14 is additionally approved for applications that are subject to pressure and may be used for façade structures that are installed without wall bracket with a spacing.
  • The SXRL with effective lengths up to 240 mm provides the right plug for every application.

Application and Permission

  • Façade, ceiling and roof substructures made of metal
  • Squared timbers
  • Joist hanger
  • Canopies made of wood
  • Windows
  • Gates and doors
  • Fire protection doors
  • Blinds / folding shutters
  • Handrails
  • Wardrobes
  • Kitchen hanging cabinets
  • TV consoles
  • Shelves
  • Lighting
  • Wall covering
  • Metal brackets
  • Metal supports
  • Guide rails
  • Cable ducts
  • Cable trays
  • Radiators
  • Air conditioning units
  • Beams
Building materials
Approved for:
  • Vertically perforated brick
  • Aerated concrete
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Thermal insulation blocks
  • Solid block made from lightweight and normal weight concrete
  • Solid brick
  • Solid sand-lime brick
  • Concrete ≥ C12/15
Also suitable for:
  • Natural stone with dense structure
  • Solid panel made from gypsum
* You can find detailed information on building materials in the registration document.


  • ETA-07/0121
  • DoP No. 0329
  • Z-21.2-2092
  • 21-009-1(2)
For Details see corresponding Documents

Assembly Instruction

  • The SXRL is suitable for push-through installation.
  • In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones. The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force.
  • In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate.
  • Recommended for the fixing of metal constructions
  • Countersunk head screws are recommended for wood constructions.
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture

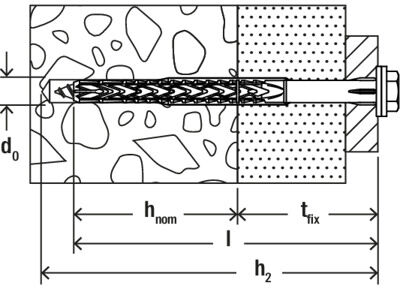

Technical Data

Technical Data

Drill diameter 10 [mm]
Anchor length 160 [mm]
Min. drill hole depth for through fixings 170 [mm]
Usable length at anchorage depth 50mm 110 [mm]
Usable length at anchorage depth 70mm 90 [mm]
Usable length at anchorage depth 90mm 70 [mm]
Drive TX40 / SW 13
Packaging Folding box
Amount 50 [pcs.]
GTIN (EAN-Code) 4048962180985
Legend   =  Permission Available

Documents for Downloading


Title Type Created Valid Till
ETA Certification Document (PDF, 10 MB) European Technical Assessment for fischer frame fixing SXR/SXRL - Plastic anchor for redundant non-structural systems in concrete and masonry ETA-07/0121 20/12/2022
DOP - Declaration of Performance (PDF, 6 MB) Declaration of Performance for fischer frame fixing SXR/SXRL (Plastic anchor for use in concrete and masonry) DoP No. 0329 17/01/2023
DIBt, National German Certification (PDF, 756 KB) General construction technique permit - fischer frame fixing SXRL 10 used as a single anchor in concrete Z-21.2-2092 25/05/2021 25/05/2026
Test report (fire protection) (PDF, 655 KB) fischer frame fixing anchor SXRL 10 under fire exposure 21-009-1(2) 16/11/2021 16/11/2026
