The light two-screw pipe clamp with a rapid locking mechanism and combination connection nut.

Pipe clamp FRS-L Universal

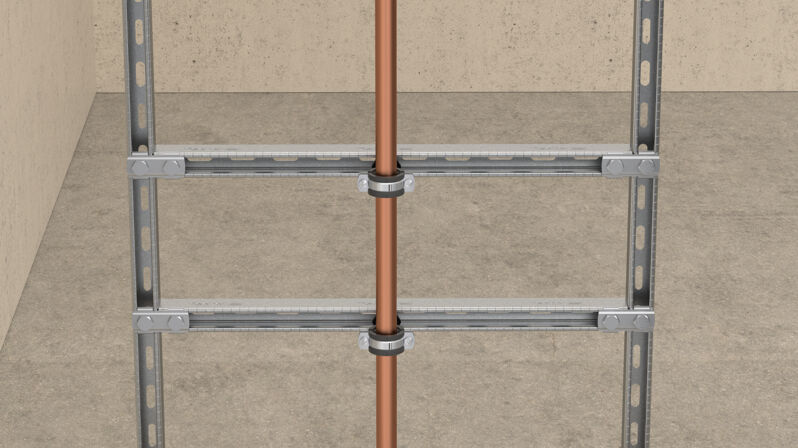

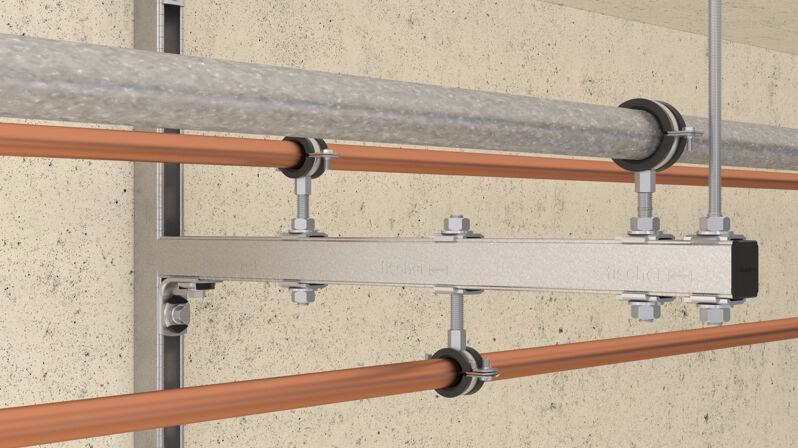

The fischer pipe clamp FRS-L Universal is a two screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination thread and a sound protection certificate. The rapid-locking mechanism guarantees a quick and easy installation. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 8 to 119 mm to be fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

Product variants

Download of image data

Product variants

16 Product variant (s)

Thread

Size

Clamping range

Width

Height

Width x thickness clamp band

Viewed 16 of 16 variant (s)

Advantages

The fire inspection report and the sound insulation report guarantee objectively tested functional safety.
The unique rapid-locking mechanism with crimped edges allows a secure and time-saving installation.
The clamp band with crimped edges gives a tight fit of the sound insulation insert and prevents it from slipping out when aligning the pipe.
The two screws allow a perfect adaptation of the pipe clamp to suit every outer pipe diameter.
The connecting nut with combination thread M8 / M10 enables an optimised warehousing.
The screw's loss protection guarantees an easy installation.
The combination drive PH3/TX25 of the screw increases flexibility during assembly.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Connecting nut: resistance welded, M8 / M10 SW13
Locking screw: pan-head screw with cross recess Phillips PH3 / TX recess TX25 drive combination
Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
Sound insulation: for DIN 4109
Temperature range: -40 °C to +100 °C
Hardness: 55 ± 5° Shore A
Fire behaviour: DIN 4102: Class B2

Test Certificate

pdf, FEB/FS-80/17 - 1

FEB Report - Measurement of the insertion loss of the pipe clamp FRS L for fresh water pipes

Created on 03/31/2017

Test report (fire protection)

pdf, GS 3.2/18-120-2

Pipe clamps FRS-L M8/M10 Universal in span ranges 8-11 to 164-172

Created on 06/29/2018

Marketing Documents

pdf,

FGRS Universal and FRS-L Universal.

Marketing Documents

pdf,

Catalog pages pipe clamp FRS-L universal

Thread ( A )	M8 / M10
Size	—
Clamping range ( D )	8 - 11 mm
Width ( B )	47 mm
Height ( H )	35 mm
Width x thickness clamp band ( b x s )	18 x 1.0 mm
Height ( Z )	25 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	0,7 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962269550

Thread ( A )	M8 / M10
Size	1/4 in
Clamping range ( D )	12 - 15 mm
Width ( B )	52 mm
Height ( H )	39 mm
Width x thickness clamp band ( b x s )	18 x 1.0 mm
Height ( Z )	27 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	0,7 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962269567

Thread ( A )	M8 / M10
Size	3/8 in
Clamping range ( D )	15 - 19 mm
Width ( B )	56 mm
Height ( H )	43 mm
Width x thickness clamp band ( b x s )	18 x 1.0 mm
Height ( Z )	29 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	0,7 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962269574

Thread ( A )	M8 / M10
Size	1/2 in
Clamping range ( D )	20 - 24 mm
Width ( B )	61 mm
Height ( H )	48 mm
Width x thickness clamp band ( b x s )	18 x 1.0 mm
Height ( Z )	31 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	0,7 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962269581

Thread ( A )	M8 / M10
Size	3/4 in
Clamping range ( D )	25 - 30 mm
Width ( B )	67 mm
Height ( H )	53 mm
Width x thickness clamp band ( b x s )	18 x 1.0 mm
Height ( Z )	34 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	0,7 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962269598
