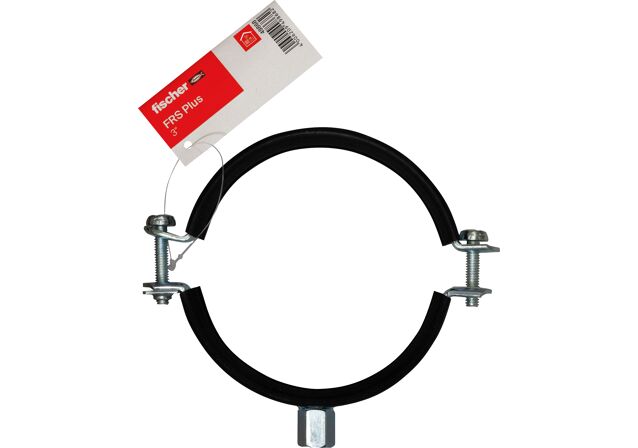

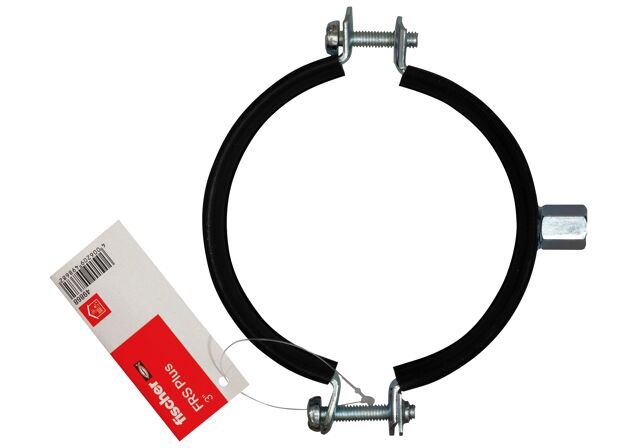

fischer Pipe clamp FRS Plus 3" E item pricing

Name: fischer Pipe clamp FRS Plus 3" E item pricing
Brand: fischer

Product variants

Download of image data

Top Features

Rapid-locking mechanism for pipe adjustment.
Sound insulation insert.
Two screws allow for ideal adaptation to the outer pipe diameter.
Loss protection of screw.

The two-screw pipe clamp with rapid-locking mechanism.

Advantages

The rapid-locking mechanism allows for fast and time-saving installation.
The safety latch fastening guarantees pipe installation without the clamp springing open.
The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe.
The combination connecting nut with M8/M10 thread enables optimised mounting choices.
The two screws allow an easy adjustment to suit the outer pipe diameter.
The screw's safety feature ensures trouble-free installation.

The fischer pipe clamp FRS Plus allows for simple, time-saving assembly of pipelines thanks to a rapid-locking mechanism. The two screws allow for ideal adaptation to suit the outer pipe diameter. The safety mechanism and fixed sound insulation insert guarantee safe pipe adjustment. Connecting nut with combination thread M8/M10 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Connecting nut: resistance welded, M8/M10, SW 13
Locking screw: flat head screw with TX drive (M5=TX25, M6=TX30)
Material sound insulation insert: EPDM; chlorine-free; silicone-free
Sound insulation: for DIN 4109
Temperature range: -40 °C to +100 °C
Hardness: 55 ± 5° Shore A
Fire behaviour: DIN 4102: Class B2

Thread ( A )	M8 / M10
Size	3 in
Clamping range ( D )	85 - 93 mm
Width ( B )	139 mm
Height ( H )	118 mm
Width x thickness clamp band ( b x s )	20 x 1.8 mm
Height ( Z )	66 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,69 kN
Contents	1 x Pipe clamp FRS Plus 89 - 92
Amount	1 pcs
GTIN (EAN-Code)	4006209498682
