Plug S 14 ROE

The plug for standard scaffold anchoring in concrete and solid brick

The fischer plug S 14 ROE is a high-quality nylon expansion plug for the seating of the fischer standard scaffold anchoring GS 12. The optimum interaction of the plug and scaffold anchoring as well as the anchorage depth of 70 mm ensure added safety. The S 14 ROE is the top choice for fixings in concrete and solid brick. The expansion wings prevent undesired turning when the scaffold anchoring is screwed in, which makes installation easier. When the standard scaffold anchoring is screwed in, the plug expands in two directions to provide secure anchorage in the building material. The plug can be turned so that the expansion forces are introduced into the building material in a targeted manner and parallel to the building material edge. This means that fixations close to the edge are also possible.

Product Description

Advantages

The ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity, thus providing increased safety.

Available Product Variants

8 Product variant (s) found

Variant

Drill diameter

d₀

Min. drill hole depth for through fixings

h₂

Effect. anchorage depth

h_ef

Anchor length

Viewed 8 of 8 variant (s)

Application and Permission

Applications

When combined with GS 12:

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building materials

GS 12 + S 14 ROE suitable for:

Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick

* You can find detailed information on building materials in the registration document.

For Details see corresponding Documents

Assembly Instruction

Functionality

In order to achieve the maximum load-bearing capacity, nylon plugs should only be used once.
Not suitable for swings, hammocks etc.

Documents for Downloading

Additional Documents

Load Table (PDF, 188 KB)

System Components & Related Categories

System Components

Hammer drill bit Quattric II

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

More Information

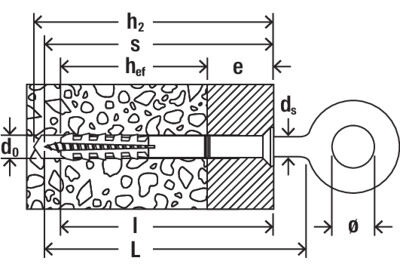

Drill diameter d₀	14 [mm]
Min. drill hole depth for through fixings h₂	95 [mm]
Effect. anchorage depth h_ef	70 [mm]
Anchor length l	70 [mm]
Max. thickness of non-bearing layer t _fix	— [mm]
Min. bolt penetration l_E,min	75 [mm]
Contents	25 x plug S 14 ROE 70
Packaging	Folding box
Amount	25 [pcs.]
GTIN (EAN-Code)	4006209521601

Drill diameter d₀	14 [mm]
Min. drill hole depth for through fixings h₂	95 [mm]
Effect. anchorage depth h_ef	70 [mm]
Anchor length l	70 [mm]
Max. thickness of non-bearing layer t _fix	— [mm]
Min. bolt penetration l_E,min	75 [mm]
Contents	4 x S 14 ROE 70
Packaging	Polybag
Amount	4 [pcs.]
GTIN (EAN-Code)	4006209626139

Drill diameter d₀	14 [mm]
Min. drill hole depth for through fixings h₂	125 [mm]
Effect. anchorage depth h_ef	70 [mm]
Anchor length l	100 [mm]
Max. thickness of non-bearing layer t _fix	30 [mm]
Min. bolt penetration l_E,min	105 [mm]
Contents	25 x plug S 14 ROE 100
Packaging	Folding box
Amount	25 [pcs.]
GTIN (EAN-Code)	4006209521618

Drill diameter d₀	14 [mm]
Min. drill hole depth for through fixings h₂	125 [mm]
Effect. anchorage depth h_ef	70 [mm]
Anchor length l	100 [mm]
Max. thickness of non-bearing layer t _fix	30 [mm]
Min. bolt penetration l_E,min	105 [mm]
Contents	4 x S 14 ROE 100
Packaging	Polybag
Amount	4 [pcs.]
GTIN (EAN-Code)	4006209626146

Drill diameter d₀	14 [mm]
Min. drill hole depth for through fixings h₂	165 [mm]
Effect. anchorage depth h_ef	70 [mm]
Anchor length l	135 [mm]
Max. thickness of non-bearing layer t _fix	65 [mm]
Min. bolt penetration l_E,min	140 [mm]
Contents	25 x plug S 14 ROE 135
Packaging	Folding box
Amount	25 [pcs.]
GTIN (EAN-Code)	4006209521625
