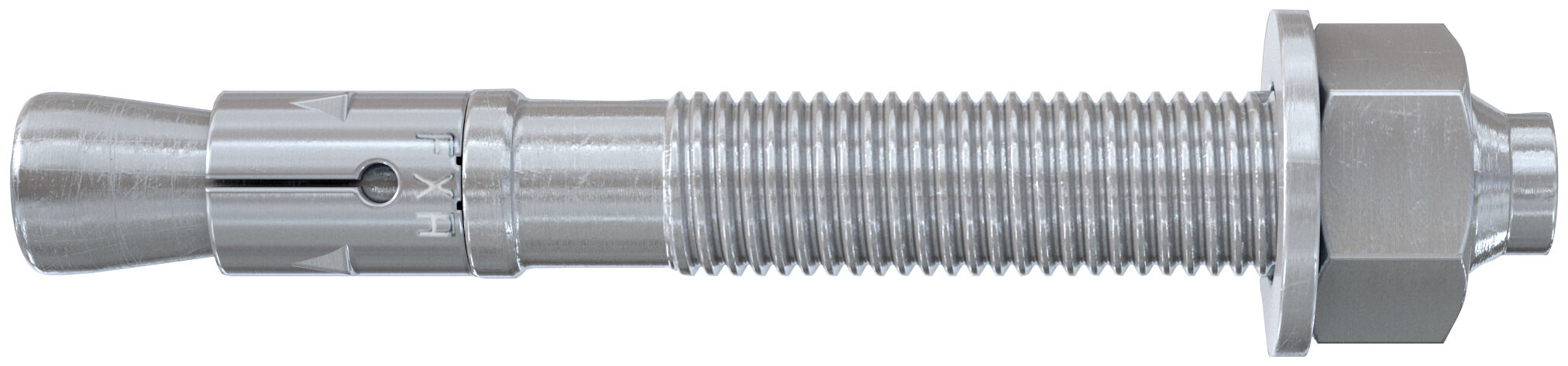

fischer bolt anchor FXA 10/30

Cost efficient fixing with ETA assessment for non-cracked concrete

Advantages

The standard anchorage depth achieves the maximum loadbearing capacities so fewer fixing points and smaller anchor plates are required.
With only a few hammer blows and minimal torque slippage installation is a simple process.
The drive-in pin protects the thread from damage, and ensures a faster installation and dismantling of the attachment.

Functionality

The FXA is suitable for pre-positioned and push through installation, also suitable for stand off installation under certain conditions.
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
The head embossing offers a simple control of the anchoring.

Mounting Strip 1 Picture

1 / 5

pdf, ETA-13/0772

European Technical Assessment for fischer Bolt anchor FXA - Torque controlied expansion anchor for use in non-cracked concrete

Created on 07/14/2020

pdf, DoP No. 0193

Declaration of Performance for fischer Bolt Anchor FXA, FXA R (Mechanical anchor for use in concrete)

Created on 07/28/2020

pdf,

fischer bolt anchor FXA
