The cost-efficient fixing for high performance requirements in cracked concrete.

Bolt anchor FAZ II Classic

Name: Bolt anchor FAZ II Classic
Brand: fischer

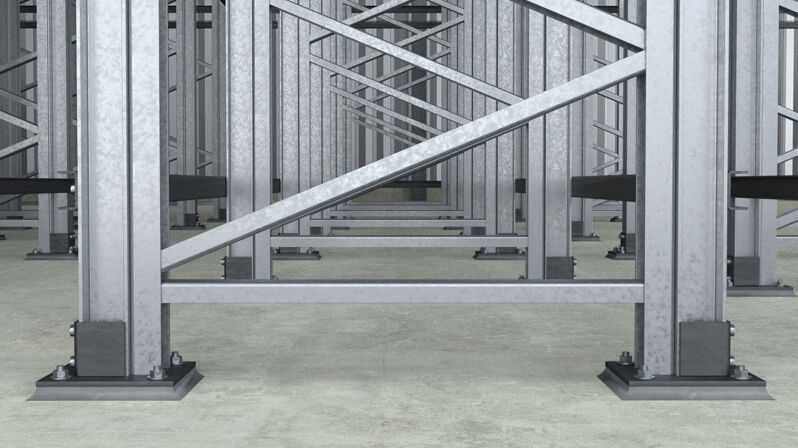

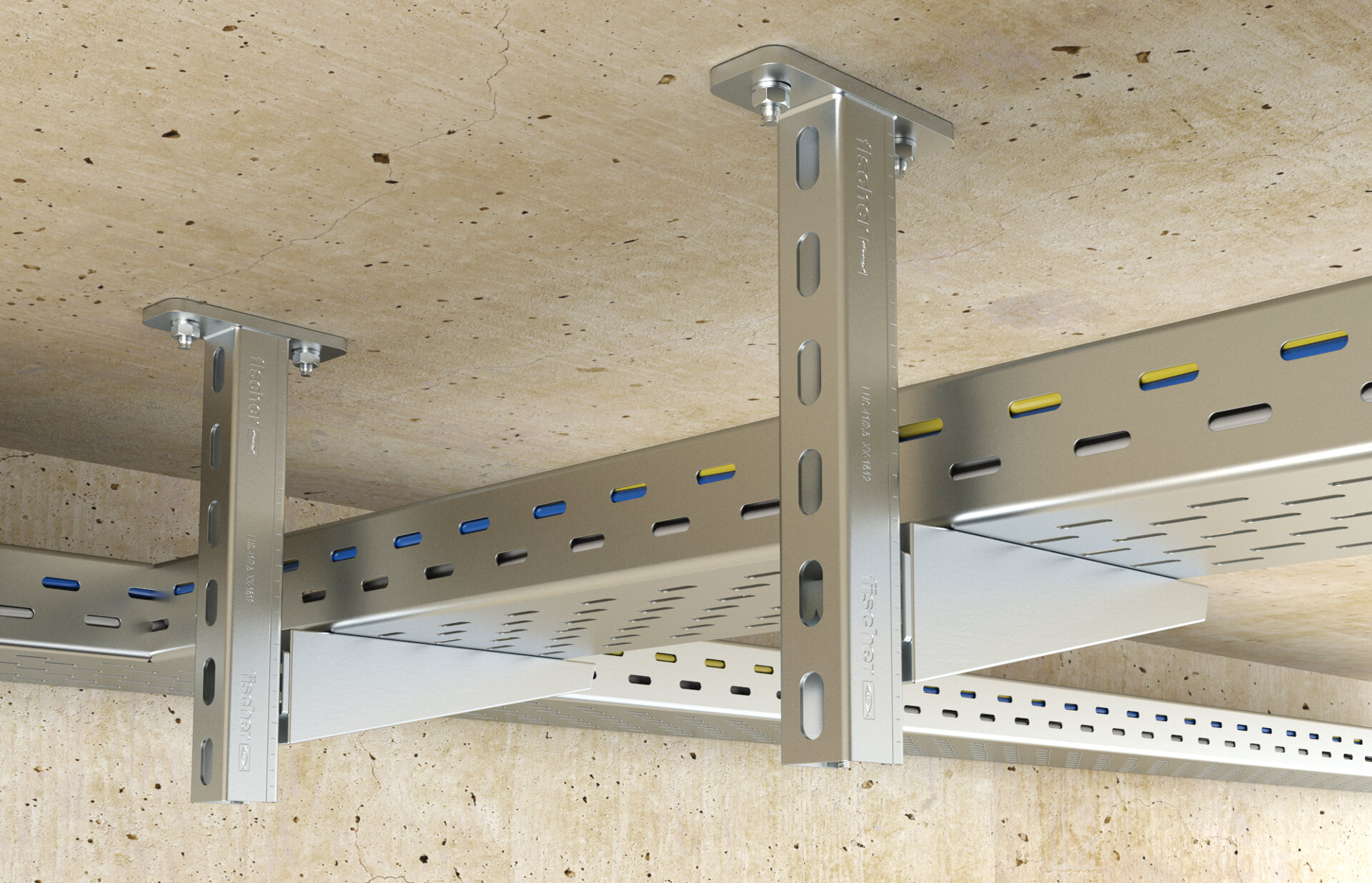

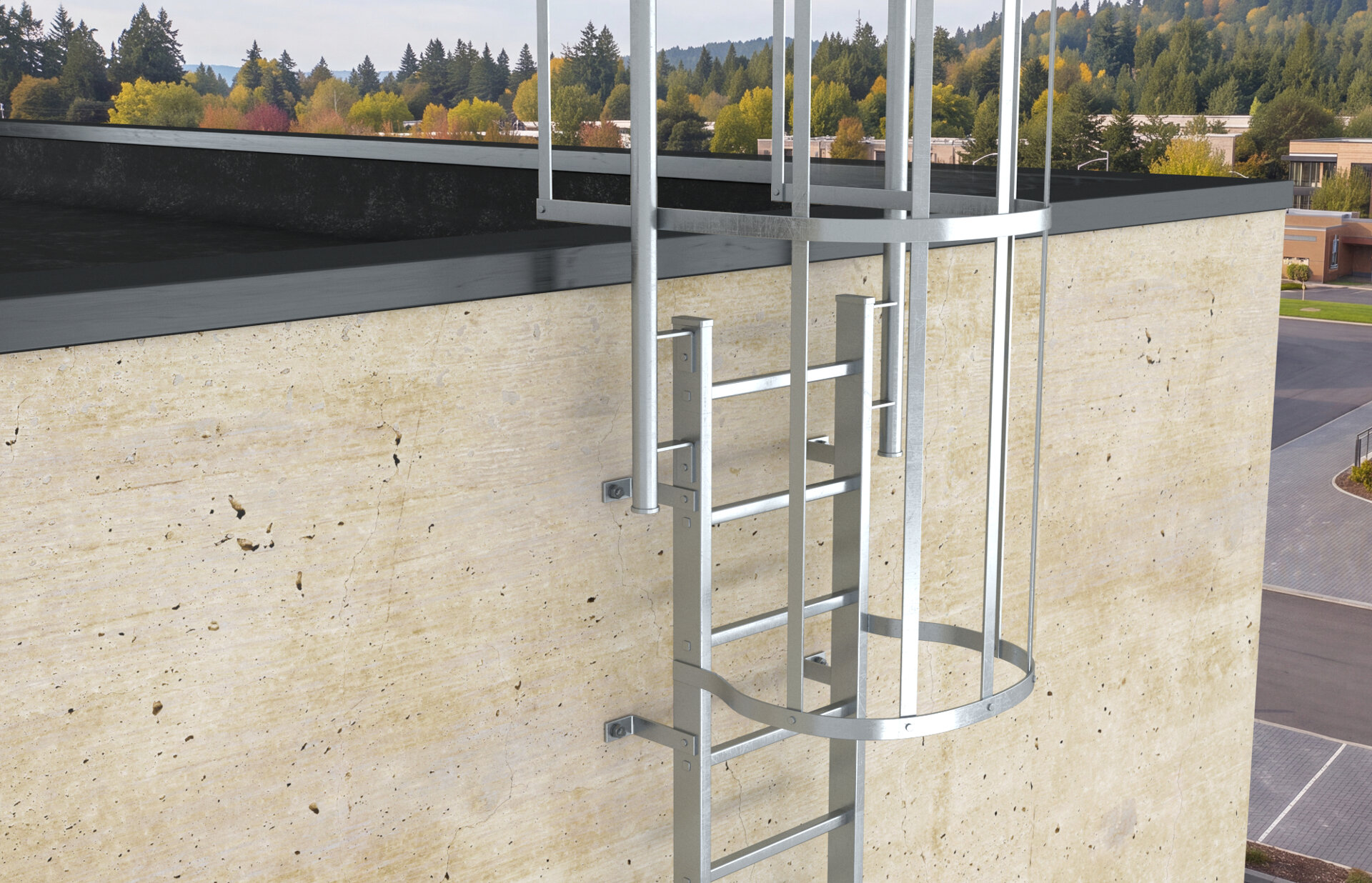

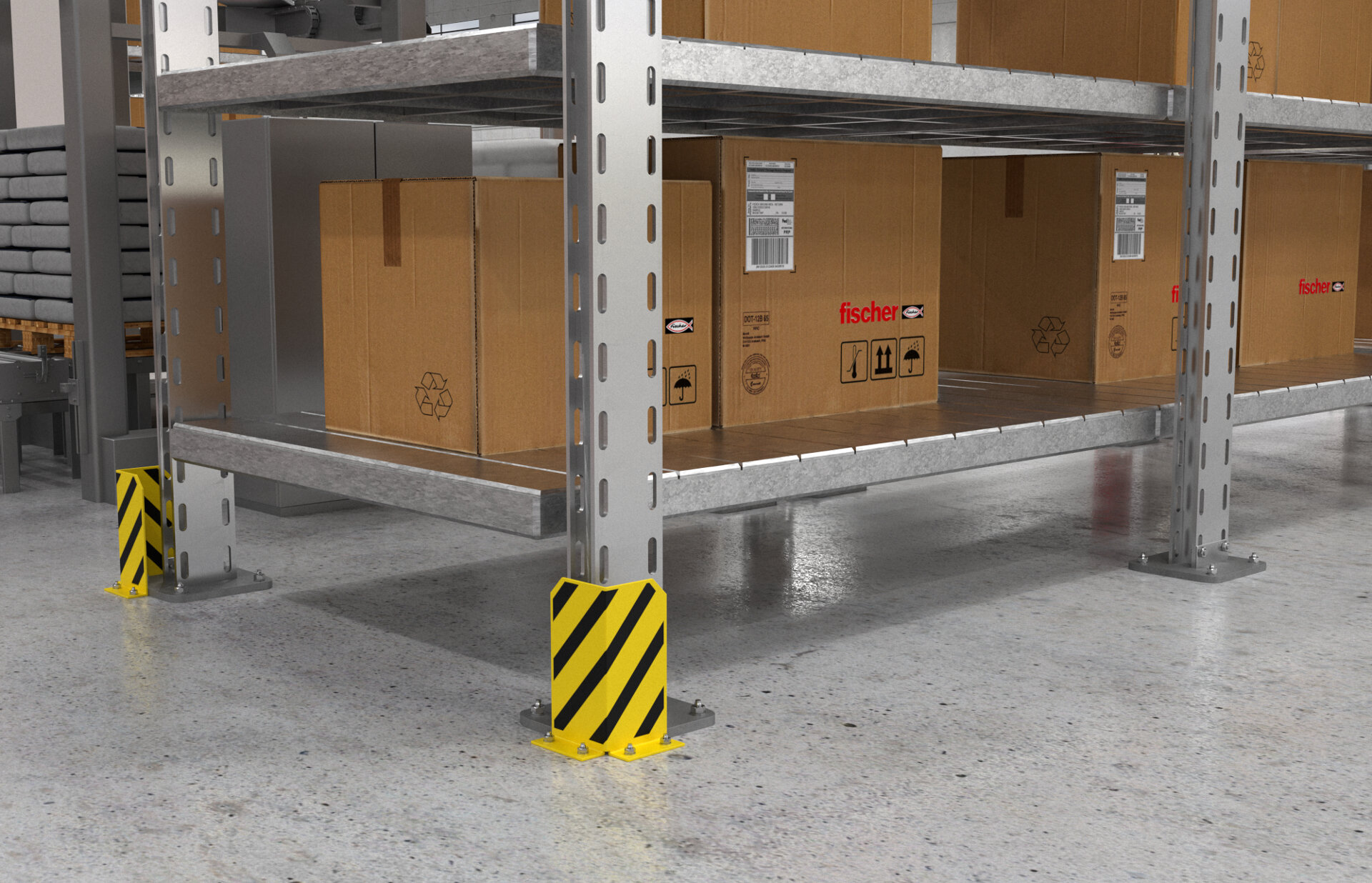

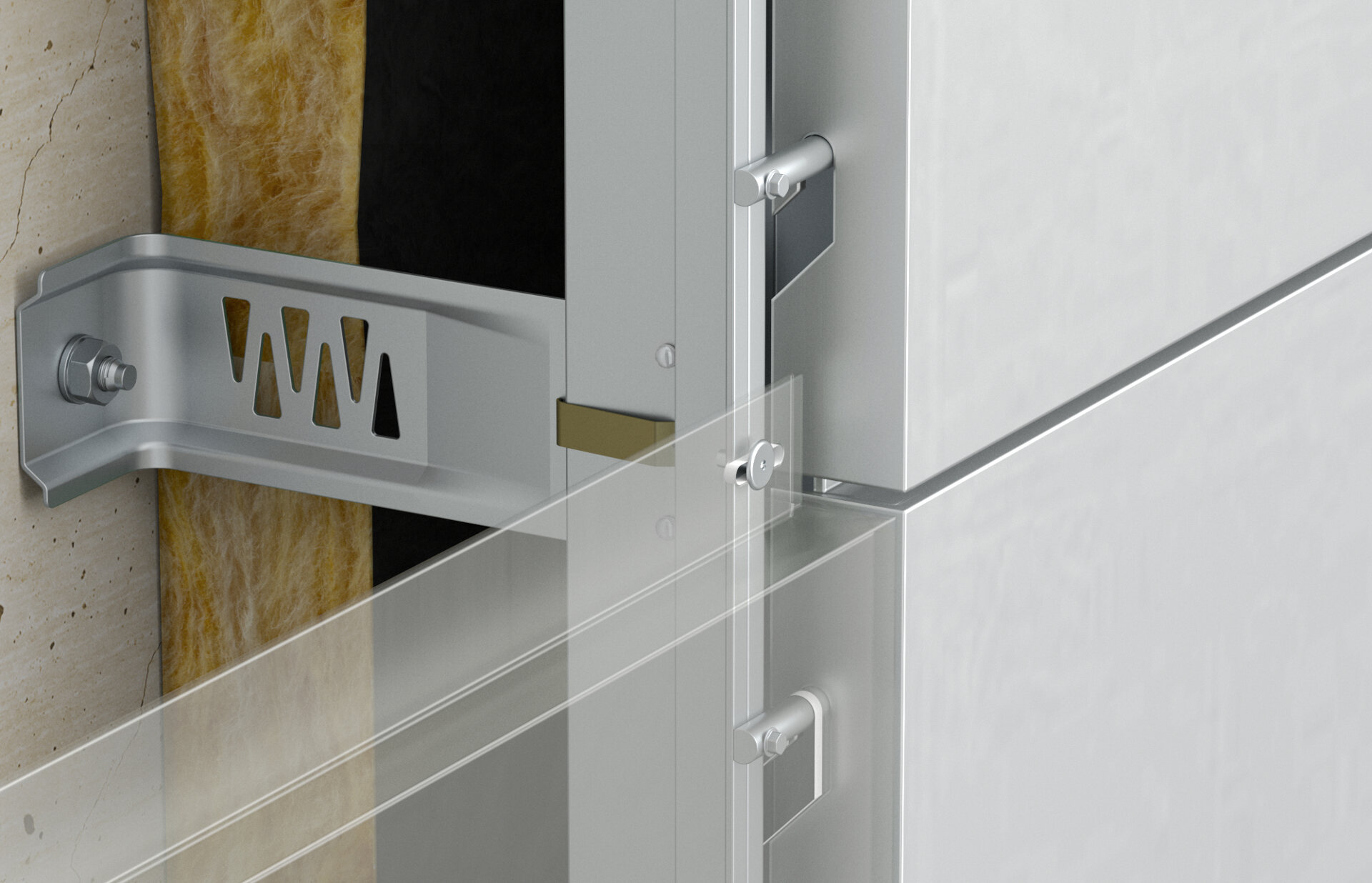

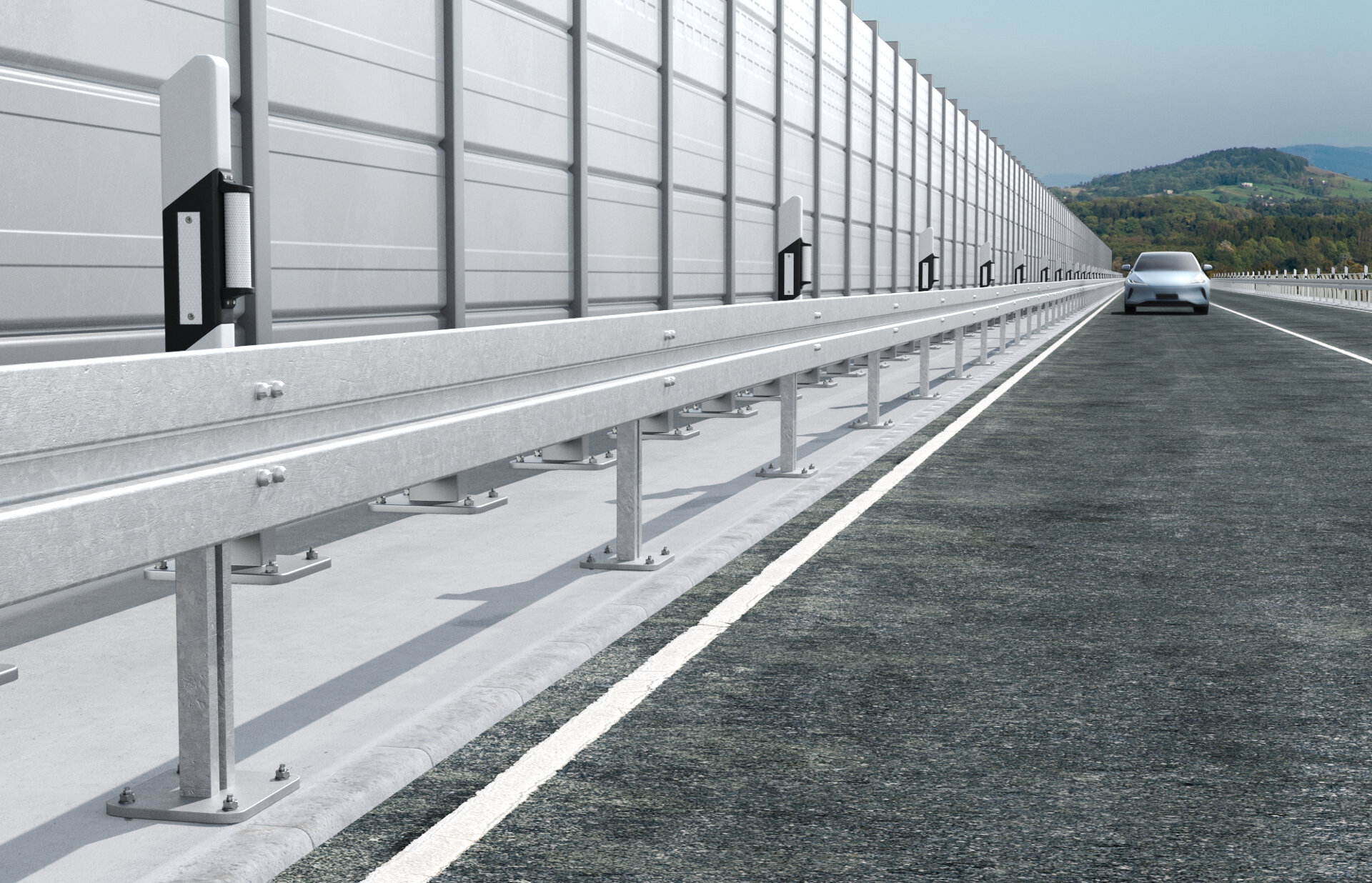

The fischer bolt anchor FAZ II Classic is the cost-efficient fixing solution for strong load performance in cracked concrete. With the FAZ II Classic, the acting loads are safely transferred into the substrate. Thanks to the two anchorage depths combined with the simple installation, the steel anchor can be used particularly flexibly. The steel anchor is ideal for anchoring façade elements, railings, cable trays and high-bay racking systems, for example.

Product variants

Download of image data

Product variants

Approvals / Test reports

40 Product variant (s)

Drill diameter

Min. drill hole depth for through fixings

Max. usable length hef,stand./hef,min.

Anchor length

Thread

Width across nut

Legend = Permission Available— = Permission not Available

More results

Viewed 18 of 40 variant (s)

Advantages

The ETA approval Option 1 and fire resistance approval R120 in cracked and non-cracked concrete ensure a high quality standard and enable all safety-relevant applications.
The full range M8-M16 in zinc plated and stainless steel allows a wide field of indoor and outdoor applications.
Thanks to the seismic approval (C1 and C2), the anchors can also be used safely in earthquake zones.
The short version is particularly suitable for avoiding reinforcement hits due to the low anchoring depth.
Quick and easy installation is possible with the help of the FA-ST II setting tool.
The two possible anchorage depths offer more flexibility in the application.

Functionality

The FAZ II Classic is suitable for pre-positioned and push-through installation.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
In case of seismic demands, the annular gap must be filled using the filling disc FFD.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 4

ETA Certification Document

pdf, ETA-23/0162

European Technical Assessment for fischer Bolt Anchor FAZ II Classic - Mechanical fasteners for use in concrete

Created on 02/26/2024

DOP - Declaration of Performance

pdf, DoP No. 0335

Declaration of Performance for for fischer Bolt Anchor FAZ II Classic (Mechanical anchor for use in concrete)

Created on 03/15/2024

Load Table

pdf,

Bolt anchor FAZ II Classic - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Marketing Documents

pdf,

FAZ II Classic. The cost-efficient fixing for high performance requirements in cracked concrete.

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	68 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 20 mm
Anchor length ( l )	77 mm
Thread ( ø x length )	M8 x 38 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505436

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	88 mm
Max. usable length hef,stand./hef,min. ( t_fix )	30 / 40 mm
Anchor length ( l )	97 mm
Thread ( ø x length )	M8 x 58 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505443

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	108 mm
Max. usable length hef,stand./hef,min. ( t_fix )	50 / 60 mm
Anchor length ( l )	117 mm
Thread ( ø x length )	M8 x 78 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505450

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	158 mm
Max. usable length hef,stand./hef,min. ( t_fix )	100 / 110 mm
Anchor length ( l )	167 mm
Thread ( ø x length )	M8 x 128 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	25 pcs.
GTIN (EAN-Code)	4048962505467

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	85 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	97 mm
Thread ( ø x length )	M10 x 53 mm
Width across nut	17 mm
Installation torque ( T_inst )	45 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505498
