Hammerfix N-P

The hammer-in plug for a simple, fast and economical installation.

The fischer Hammerfix N-P with mushroom head consists of a high-quality nylon plug and a nail screw made from zinc-plated steel and stainless steel. These are pre-mounted for a fast installation process. The Hammerfix is inserted through the attachment part in a time-saving push-through installation. When the nail screw is hammered in, the plug sleeve expands and creates a secure anchoring in the building material. The fischer Hammerfix N-P with mushroom head is ideal for the fixing of thin attachment parts and attachment parts with slots, particularly in visible areas.

Product Description

Advantages

Time and money savings thanks to fast hammerset installation. This enables cost-effective series installations.
Easy installation thanks to integrated hammer-in stop. This avoids the premature expansion of the plug.
Increased flexibility due to subsequent dismounting. The thread of the nail screw in conjunction with the cross-slot recess allows the screw to be screwed out.
Diverse usage possibilities thanks to the large assortment in different diameters and usable lengths.

Available Product Variants

12 Product variant (s) found

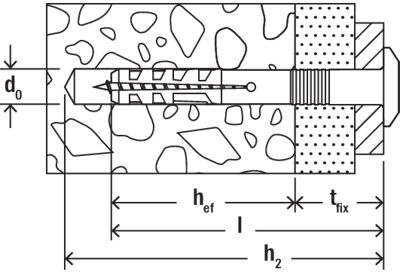

Variant

Drill diameter

d₀

Effect. anchorage depth

h_ef

Anchor length

Min. drill hole depth for through fixings

h₂

Viewed 12 of 12 variant (s)

Application and Permission

Applications

Slides
Sheets
Signs
Mounting in the viewing area

Building materials

Concrete
Solid sand-lime brick
Building brick
Natural stone
Solid brick made from lightweight concrete
Aerated concrete
Solid panel made from gypsum

* You can find detailed information on building materials in the registration document.

For Details see corresponding Documents

Assembly Instruction

Functionality

Suitable for push-through installation.
When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.

Documents for Downloading

Additional Documents

Load Table (PDF, 33 KB)

System Components & Related Categories

System Components

Hammer drill bit Quattric II

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

More Information

Related Categories

Hammerfix N Green

The hammer-in plug for a simple, fast and economical installation.

More Information

Hammerfix N-S

The hammer-in plug for a simple, fast and economical installation.

More Information

Hammerfix N-F

The hammer-in plug for a simple, fast and economical installation.

More Information

Hammerfix N-S D

The hammer-in plug for a simple, fast and economical installation.

More Information

Drill diameter d₀	5 [mm]
Effect. anchorage depth h_ef	25 [mm]
Anchor length l	30 [mm]
Min. drill hole depth for through fixings h₂	45 [mm]
Max. fixture thickness t _fix	5 [mm]
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 [pcs.]
GTIN (EAN-Code)	4006209503386

Drill diameter d₀	6 [mm]
Effect. anchorage depth h_ef	30 [mm]
Anchor length l	30 [mm]
Min. drill hole depth for through fixings h₂	45 [mm]
Max. fixture thickness t _fix	1 [mm]
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962132083

Drill diameter d₀	6 [mm]
Effect. anchorage depth h_ef	30 [mm]
Anchor length l	40 [mm]
Min. drill hole depth for through fixings h₂	55 [mm]
Max. fixture thickness t _fix	7 [mm]
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 [pcs.]
GTIN (EAN-Code)	4006209487952

Drill diameter d₀	6 [mm]
Effect. anchorage depth h_ef	30 [mm]
Anchor length l	40 [mm]
Min. drill hole depth for through fixings h₂	55 [mm]
Max. fixture thickness t _fix	7 [mm]
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	200 [pcs.]
GTIN (EAN-Code)	4048962132106

Drill diameter d₀	6 [mm]
Effect. anchorage depth h_ef	30 [mm]
Anchor length l	40 [mm]
Min. drill hole depth for through fixings h₂	55 [mm]
Max. fixture thickness t _fix	7 [mm]
Drive	PZ2
Contents	50 x N 6 x 40 /7 P
Packaging	Folding box
Amount	50 [pcs.]
GTIN (EAN-Code)	4006209503393

Drill diameter d₀	8 [mm]
Effect. anchorage depth h_ef	40 [mm]
Anchor length l	40 [mm]
Min. drill hole depth for through fixings h₂	55 [mm]
Max. fixture thickness t _fix	1 [mm]
Drive	PZ3
Contents	—
Packaging	Folding box
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962132090

Drill diameter d₀	— [mm]
Effect. anchorage depth h_ef	— [mm]
Anchor length l	— [mm]
Min. drill hole depth for through fixings h₂	— [mm]
Max. fixture thickness t _fix	— [mm]
Drive	—
Contents	—
Packaging	—
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962170344
