The hammer-in plug for a simple, fast and economical installation.

Hammerfix N-S

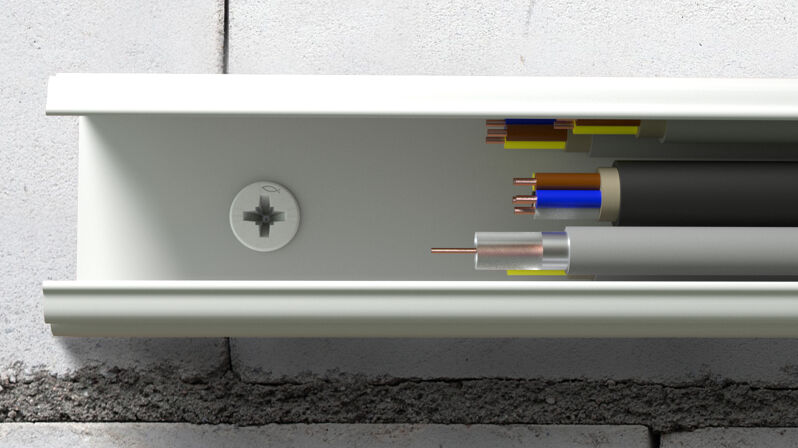

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a nail screw made from zinc-plated or stainless steel. These are pre-mounted for a fast installation process. The Hammerfix is inserted through the attachment part in a time-saving push-through installation. When the nail screw is hammered in, the plug sleeve expands and creates a secure anchoring in the building material. The fischer Hammerfix N-S with countersunk head is ideal for the fixing of wood constructions, plaster and wall connections, and cable and pipe clips in all building materials.

Product variants

Download of image data

Product variants

53 Product variant (s)

Drill diameter

Effect. anchorage depth

Anchor length

Min. drill hole depth for through fixings

Max. fixture thickness

Drive

More results

Viewed 18 of 53 variant (s)

Advantages

The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
The wide range of diameters and usage lengths provides the correct plug for every fixing.

Functionality

Suitable for push-through installation.
When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.

Mounting Strip 1 Picture

1 / 4

1
2
3
4

Hammer drill bit Quattric II S / Quattric II
74 variants

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	30 mm
Min. drill hole depth for through fixings ( h₂ )	45 mm
Max. fixture thickness ( t_fix )	5 mm
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209503959

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	30 mm
Min. drill hole depth for through fixings ( h₂ )	45 mm
Max. fixture thickness ( t_fix )	5 mm
Drive	—
Contents	20 x Hammerfix N 5 x 30 20 x Nail 3.5 x 38 Z, pre-assembled
Packaging	Blister card
Amount	2 pcs
GTIN (EAN-Code)	8590369454764

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	40 mm
Min. drill hole depth for through fixings ( h₂ )	55 mm
Max. fixture thickness ( t_fix )	15 mm
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209503515

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	50 mm
Min. drill hole depth for through fixings ( h₂ )	65 mm
Max. fixture thickness ( t_fix )	25 mm
Drive	PZ2
Contents	—
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209503522

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	50 mm
Min. drill hole depth for through fixings ( h₂ )	65 mm
Max. fixture thickness ( t_fix )	25 mm
Drive	—
Contents	10 x Hammerfix N 5 x 50 10 x Nail 3.5 x 58 Z, pre-assembled
Packaging	Blister card
Amount	10 pcs
GTIN (EAN-Code)	4006209149270
